cypress公司的EZ-PD™ CCG3PA是高度集成的USB Type-C端口控制器,和最新的USB Type-C和PD標準兼容.器件采用Cypress公司的M0S8技術和32位ARM® Cortex™-M0處理器,64KB閃存,完整的Type-C USB-PD收發器,Type-C端口所需的所有端電阻,用于電壓(VBUS)穩壓的反饋控制電路和系統級ESD保護.主要用在PC電源適配器,移動充電器,汽車充電器和電源柜應用.本文介紹了EZ-PD™ CCG3PA主要特性,邏輯框圖和內部框圖,多種應用電路以及評估板CY4532 EZ-PD CCG3PA EVK(主板和電源板)主要特性,電路圖,材料清單和PCB設計圖.

EZ-PD™ CCG3PA is Cypress’s highly integrated USB Type-C port controller that complies with the latest USB Type-C and PDstandards and is targeted for PC power adapters, mobile chargers, car chargers, and power bank applications. In such applications,CCG3PA provides additional functionalities and BOM integration advantages. CCG3PA uses Cypress’s proprietary M0S8 technologywith a 32-bit ARM® Cortex™-M0 processor, 64KB flash, a complete Type-C USB-PD transceiver, all termination resistors required fora Type-C port, an integrated feedback control circuitry for voltage (VBUS) regulation and system-level ESD protection. It is availablein 24-pin QFN and 16-pin SOIC packages.

EZ-PD™ CCG3PA主要特性:

Type-C Support and USB-PD Support
■ Supports USB PD3.0 Version 1.1 Spec including ProgrammablePower Supply Mode
■ Configurable resistors RP and RD
■ Supports one USB Type-C port and one Type-A port
2x Legacy/Proprietary Charging Blocks
■ Supports QC 4.0, Apple charging 2.4A, AFC, BC 1.2
■ Integrates all required terminations on DP/DM lines
Integrated Voltage (VBUS) Regulation and CurrentSense Amplifier
■ Analog regulation of secondary side feedback node (directfeedback or opto coupler)
■ Integrated shunt regulator function for VBUS control
■ Constant current or constant voltage mode
■ Supports low-side current sensing for constant current control
System-Level Fault Protection
■ On-chip OVP, OCP, UVP, and SCP
■ Supports OTP through integrated ADC circuit
32-bit MCU Subsystem
■ ARM Cortex-M0 CPU
■ 64-KB Flash
■ 8-KB SRAM
Clocks and Oscillators
■ Integrated oscillator eliminating the need for external clock
Power
■ 3.0V to 24.5V operation (30-V tolerant)
■ Deep Sleep: 5 μA, Sleep: 3 mA
System-Level ESD Protection
■ On CC, VBUS, and DP/DM pins
■ ± 8-kV Contact Discharge and ±15-kV Air Gap Discharge basedon IEC61000-4-2 level 4C
Packages
■ 24-pin QFN and 16-pin SOIC
■ Supports extended industrial temperature range(–40℃ to +105℃)

圖1.EZ-PD™ CCG3PA邏輯框圖

圖2.EZ-PD™ CCG3PA內部框圖

圖3.EZ-PD™ CCG3PA帶光耦反饋控制的PC電源適配器應用電路圖

圖4.EZ-PD™ CCG3PA帶直接反饋控制的手機電源適配器應用電路圖

圖5.EZ-PD™ CCG3PA汽車充電器應用電路圖

圖6.EZ-PD™ CCG3PA電源柜應用電路圖

評估板CY4532 EZ-PD CCG3PA EVK

The CY4532 EZ-PD™ CCG3PA Evaluation Kit (EVK) is based on the CCG3PA product family of Cypress’s USB Type-C microcontrollers. This EVK is intended to be an evaluation vehicle for USB Type-C Power Adapter (PA) and USB Type-C Power Bank (PB) applications. The kit can be configured for a PA or PB application using a combination of firmware, jumper settings on the kit hardware, and external accessories. The following paragraphs provide a brief description of both applications:

USB Type-C Power Adapter (PA): To charge a device such as a mobile phone or notebook which supports battery charging through the Type-C interface. The device can be connected to the Type-C port on the CY4532 EVK’s Main Board to be charged as per the USB Power Delivery (PD) protocol. This application requires a DC input to be supplied to the EVK.

In addition to charging through the USB Type-C port, the EVK also supports charging through a USB Type-A port to enable battery charging of legacy devices. The CY4532 EVK supports Battery Charging (BC) 1.2, Qualcomm Quick Charge (QC) 3.0, Apple 2.4A charging and Samsung Adaptive Fast Charging (AFC) charging protocols on the USB Type-A port.

USB Type-C Power Bank (PB): This application is similar to the PA application. Here, a 1-Cell or 2-Cell Lithium-ion battery, which is connected to the CY4532 EVK acts as the power source to support charging on USB Type-C and USB Type-A ports. In addition, the battery can be charged using a USB Type-C Power Adapter connected to the USB Type-C port of the EVK’s Main Board.

In addition to the applications described above, the CY4532 Power Board can be used as a Programmer for Cypress EZ-PD CCGx Products supporting Configuration Channel (CC) bootloading. Refer to 5. for more details.

評估板CY4532 EZ-PD CCG3PA EVK包括:

The CY4532 EZ-PD CCG3PA EVK consists of the following contents:
CY4532 EZ-PD CCG3PA EVK Power Board
CY4532 EZ-PD CCG3PA EVK Main Board (pre-mounted on the CY4532 EVK Power Board)
12 V 24 W DC Power Adapter
Quick Start Guide

圖7.評估板CY4532 EZ-PD CCG3PA EVK架構圖

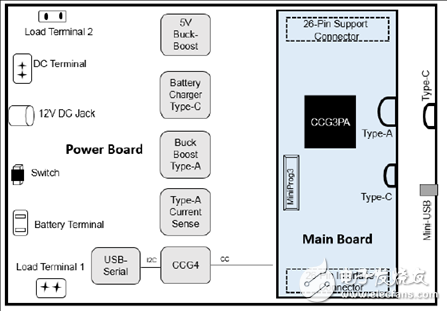

圖8.CY4532 電源板框圖

圖9.CY4532 電源板連接器圖

圖10.CY4532 EVK主板框圖

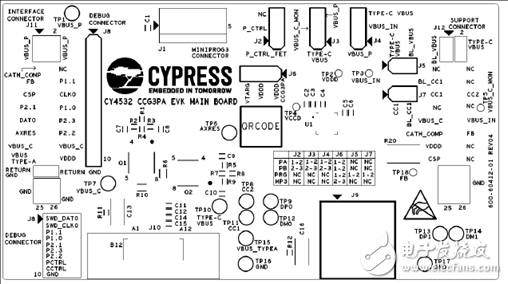

圖11.CY4532 EVK主板連接器/跳線設定圖

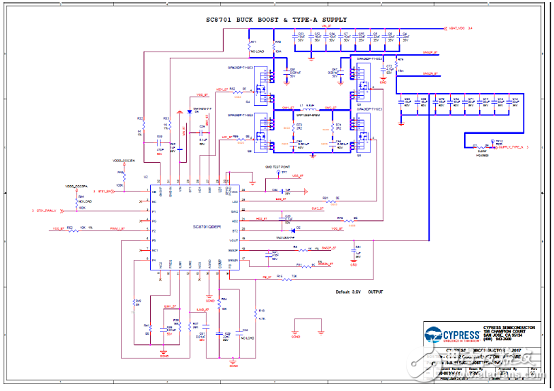

圖12.CY4532 EVK主板電路圖(1)

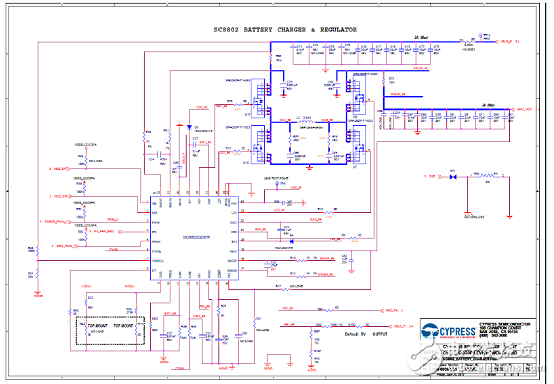

圖13.CY4532 EVK主板電路圖(2)

圖14.CY4532 EVK主板電路圖(3)
CY4532 EVK主板材料清單(BOM):

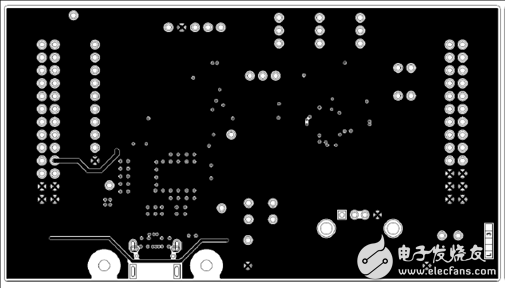

圖15.CY4532 EVK主板PCB設計圖(1)

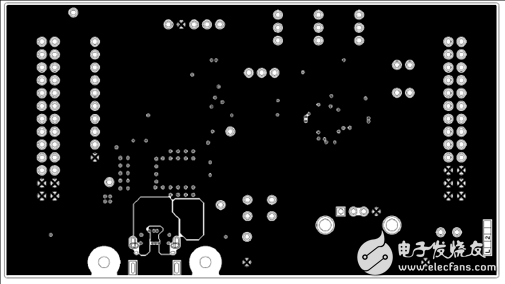

圖16.CY4532 EVK主板PCB設計圖(2)

圖17.CY4532 EVK主板PCB設計圖(3)

圖18.CY4532 EVK主板PCB設計圖(4)

圖19.CY4532 EVK主板PCB設計圖(5)

圖20.CY4532 EVK主板PCB設計圖(6)

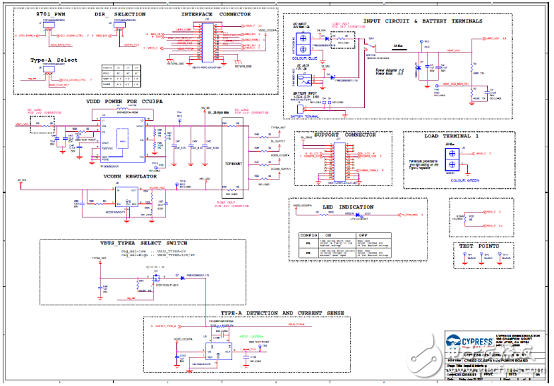

圖21.CY4532 EVK電源板電路圖(1)

圖22.CY4532 EVK電源板電路圖(2)

圖23.CY4532 EVK電源板電路圖(3)

圖24.CY4532 EVK電源板電路圖(4)

圖25.CY4532 EVK電源板電路圖(5)

圖26.CY4532 EVK電源板電路圖(6)
CY4532 EVK電源板材料清單(BOM):

圖27.CY4532 EVK電源板PCB設計圖(1)

圖28.CY4532 EVK電源板PCB設計圖(2)

圖29.CY4532 EVK電源板PCB設計圖(3)

圖30.CY4532 EVK電源板PCB設計圖(4)

圖31.CY4532 EVK電源板PCB設計圖(5)

圖32.CY4532 EVK電源板PCB設計圖(6)
詳情請見:

和
document.pdf
CY4532_EZ_PD_CCG3PA_EVALUATION_KIT_GUIDE.pdf
