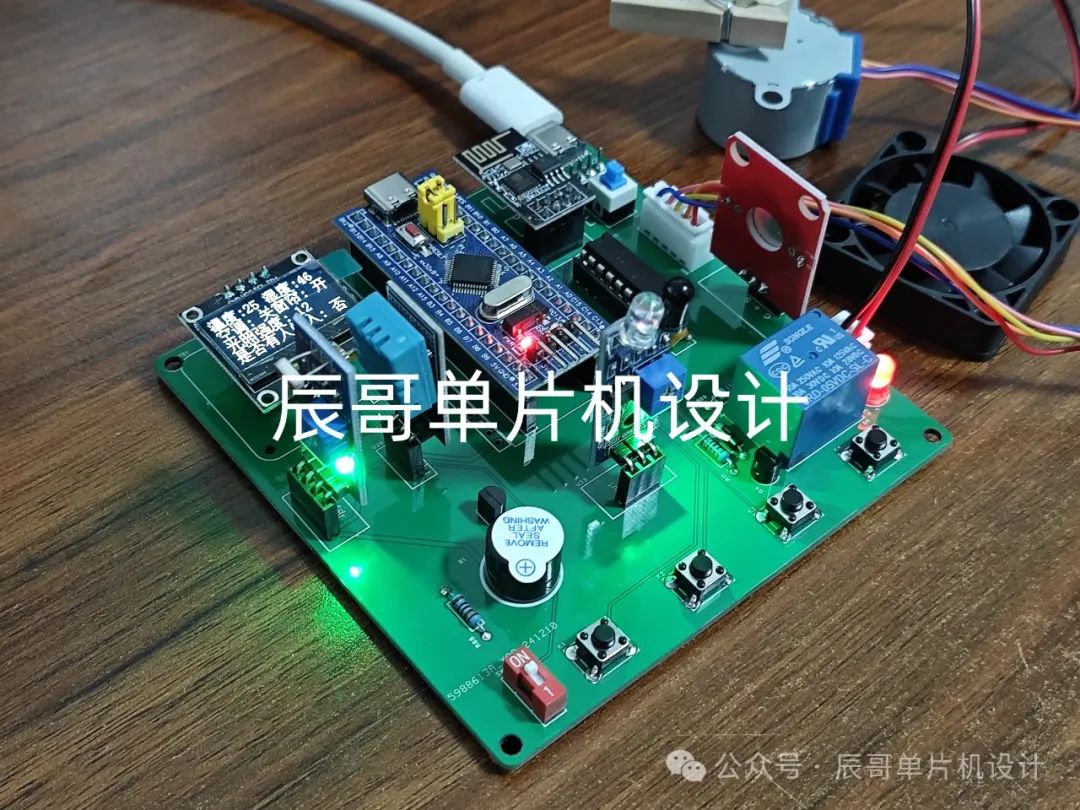

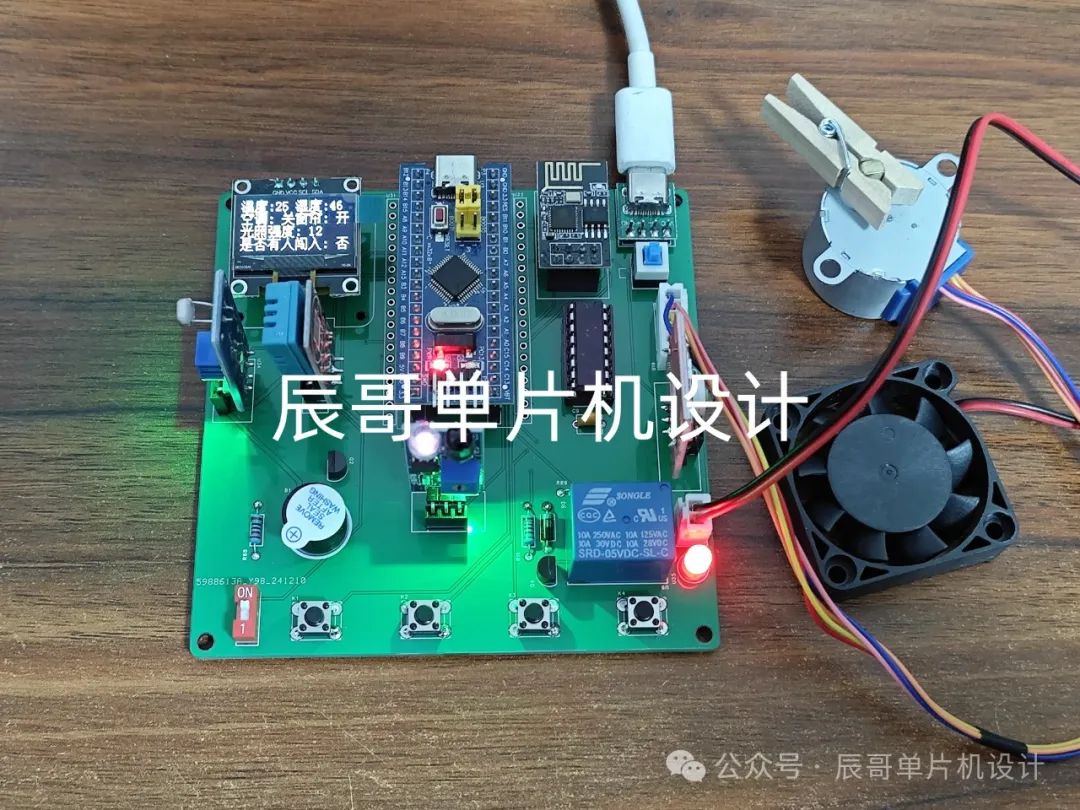

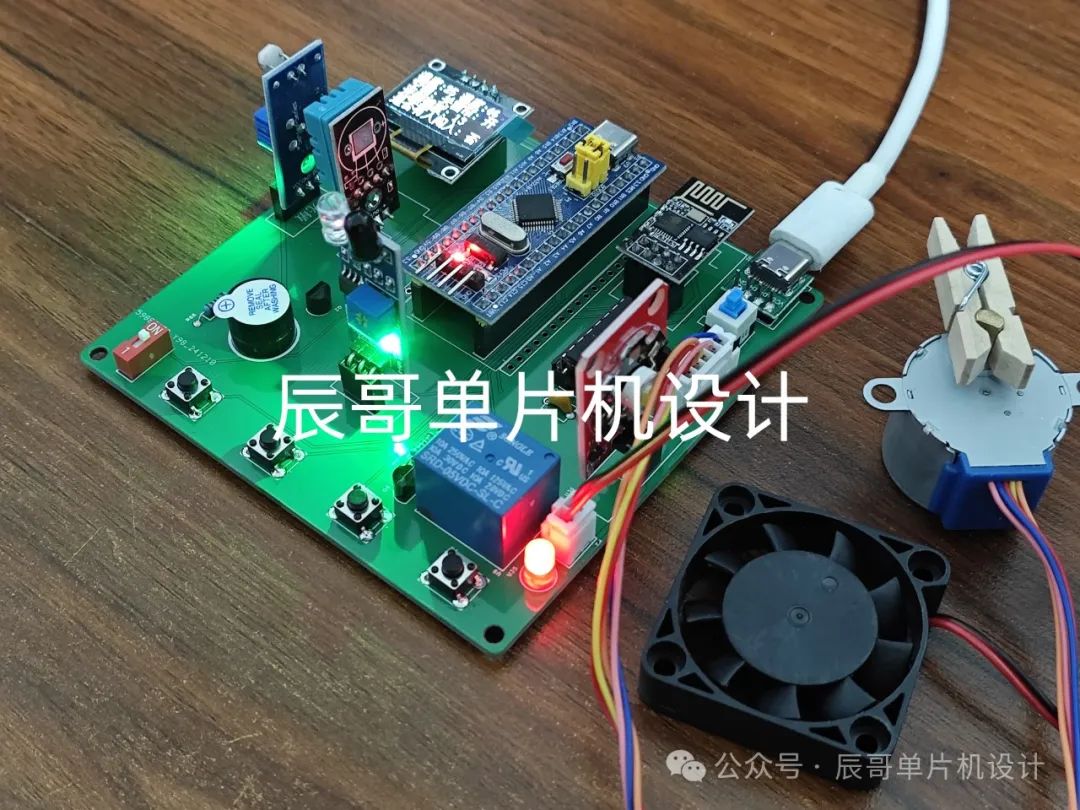

項目成品圖片：

01

—

項目簡介

1.功能詳解

STM32室內無線控制系統

功能如下：

環境監測：溫濕度、光照信息實時監測并在OLED上顯示

防盜報警：當有人闖入時觸發蜂鳴器報警

自動控制：根據光照強度大小控制燈光和窗簾的開關

空調控制：根據環境溫度信息判斷是否超出閾值范圍打開空調

按鍵控制：按鍵可以手動開關防盜報警、照明燈和窗簾的控制

機智云平臺：通過連接機智云APP遠程查看環境信息數據，并可以手動控制窗簾、照明燈的開關

2.材料清單

STM32F103C8T6單片機

OLED 屏幕

DHT11溫濕度傳感器

ESP8266-01S WiFi模塊

光敏傳感器

繼電器

風扇模塊

大功率LED燈模塊

有源蜂鳴器

步進電機

02

—

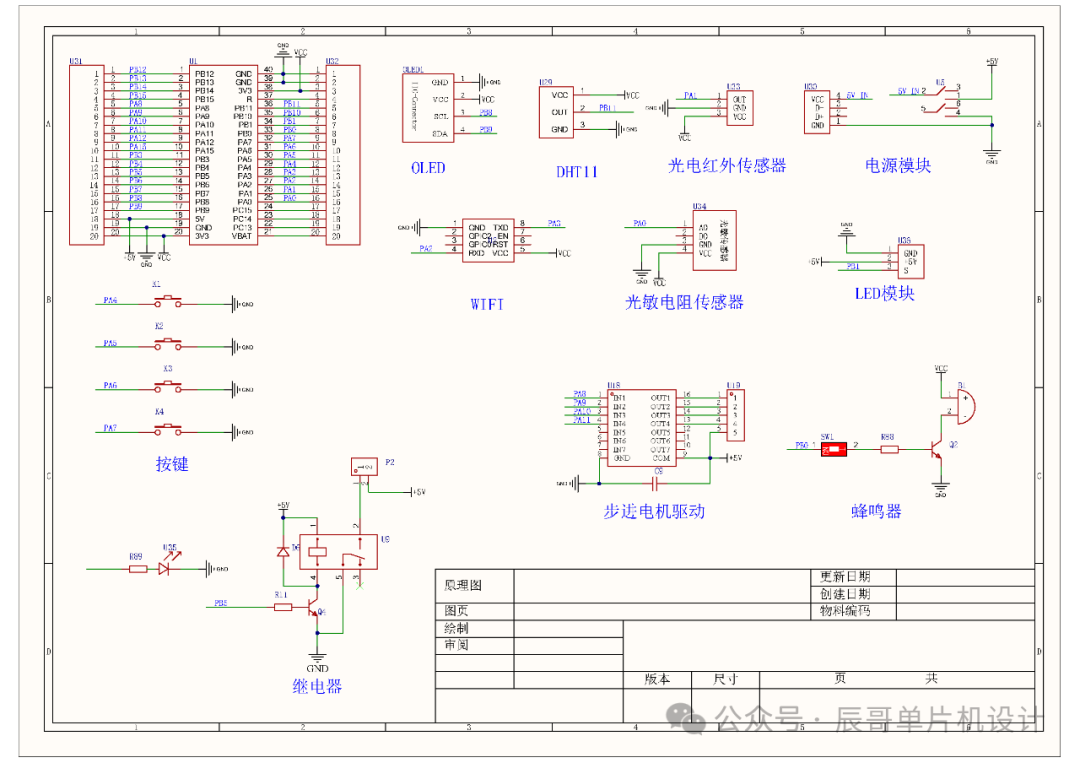

原理圖設計

03

—

PCB硬件設計

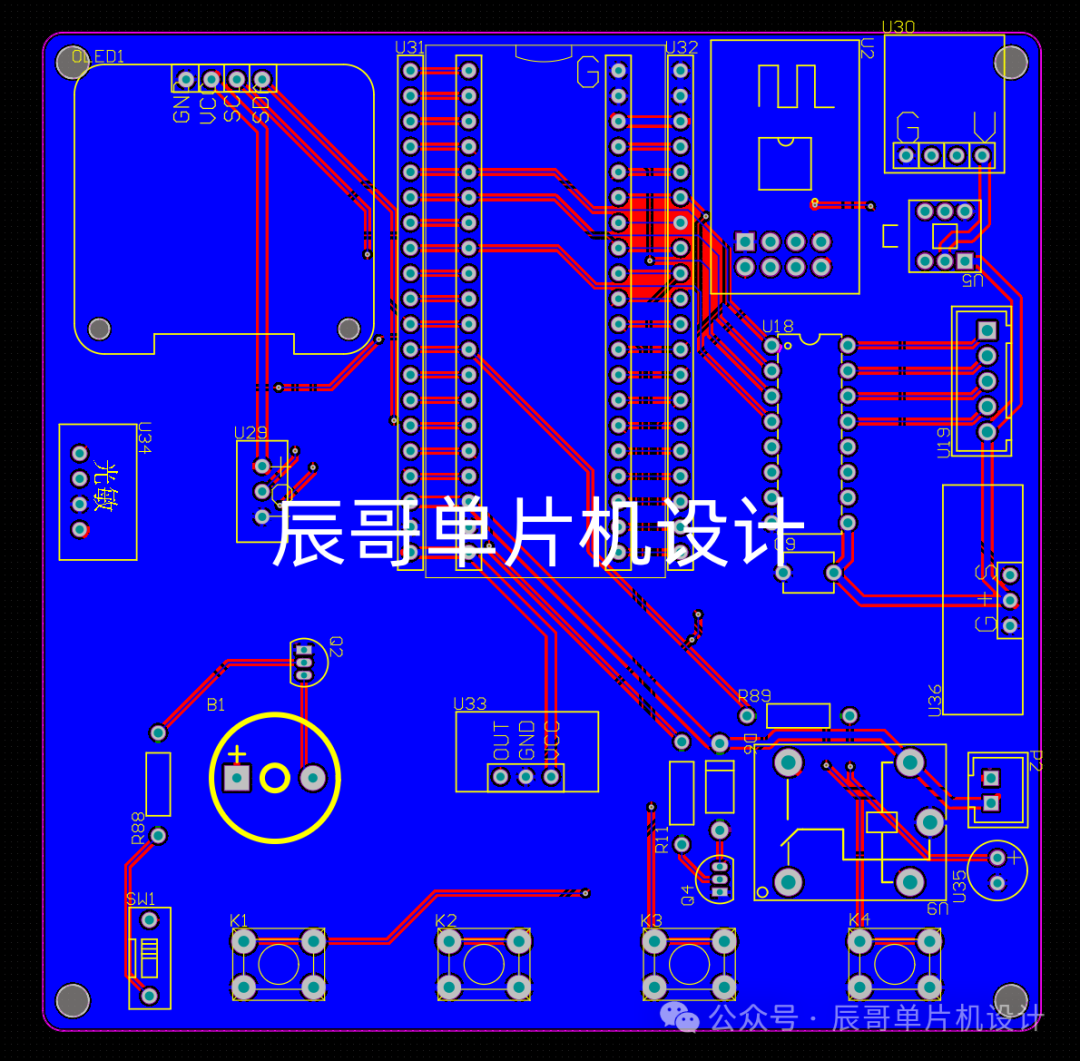

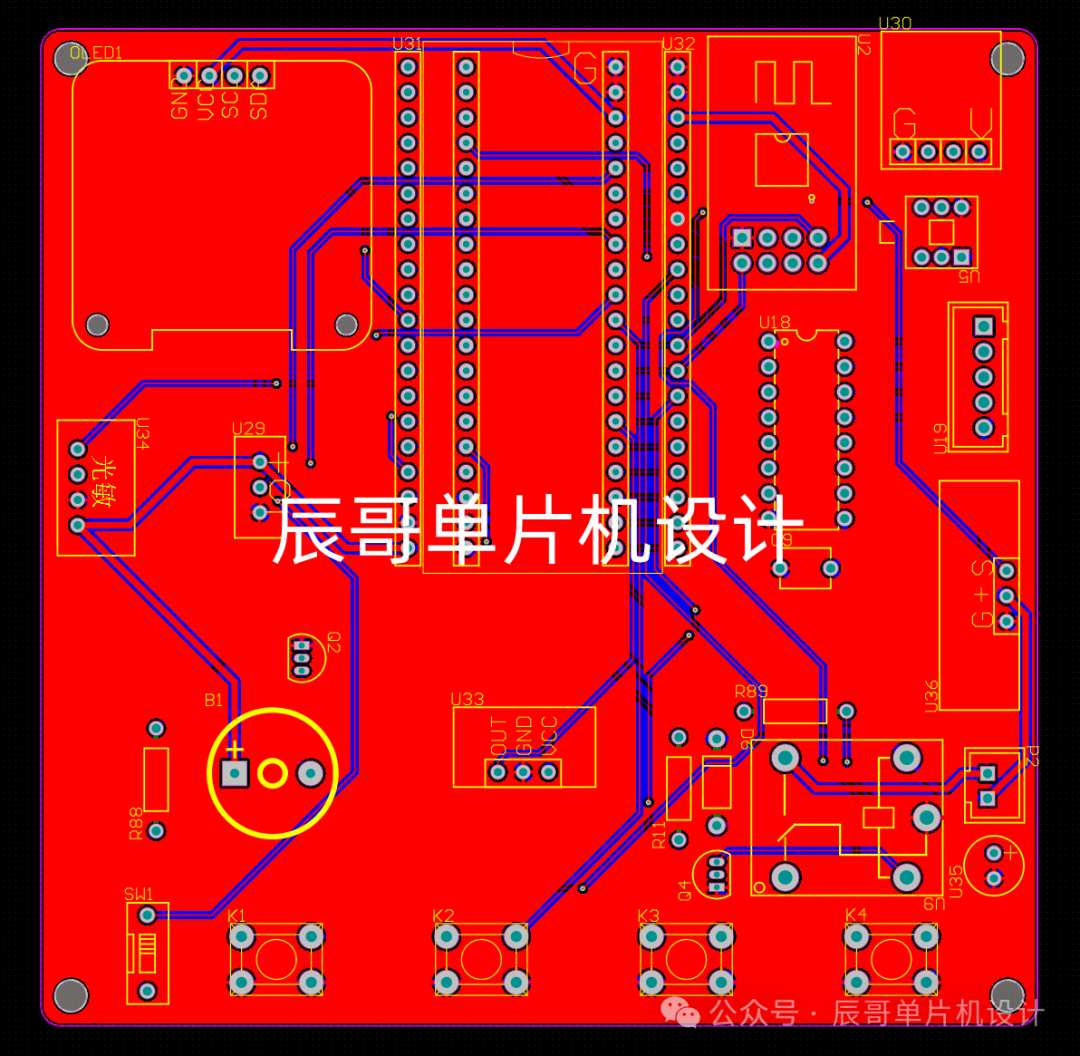

PCB圖

04

—

程序設計

#include"stm32f10x.h" // Device header#include"Delay.h"#include"LED.h"#include"Key.h"#include"OLED.h"#include"DHT11.h"#include"sys.h"#include"usart.h"#include"usart2.h"#include"string.h"#include"stdio.h"#include"timer.h"#include"mq2.h"#include"Motor.h"#include"gizwits_product.h"#include"Delay.h"
//顯示全局變量===============================================================================================================================uint16_tADValue;uint16_tVoltage;u8 temp =0,humi =0;u8 hongwai=0;intkey_num; //按鍵返回值
//得到數據變量===========================================voidshuju(){ADValue =AD_GetValue();Voltage =99-99* ADValue /4095;DHT11_Read_Data(&temp,&humi);}//按鍵==========================================u8 mode_flag =0; //模式控制：0-自動 ，1-手動u8 alarm_flag=0;u8 chuanglian_flag=0;u8 guangzhao_flag=0;voidanjian(){key_num=Key_GetNum();//OLED_ShowString(3,14,":");//OLED_ShowNum(3,14,key_num,1);if(key_num==1) {hongwai=1;}else{hongwai=0;}
//if(key_num == 2)//{//if(++mode_flag==2)mode_flag=0;//}//報警if(key_num==3) {if(++alarm_flag==2)alarm_flag=0;}//窗簾if(key_num==4) {if(++chuanglian_flag==2)chuanglian_flag=0;}//光照if(key_num==5) {if(++guangzhao_flag==2)guangzhao_flag=0;}}//自動控制============================================//u8 flag=0;u8 kongtiao_1=0;voidauto1(){//照明控制if(guangzhao_flag==0){if(Voltage>50){LED1_ON();}if(Voltage<=50){LED1_OFF();}}//窗簾控制if(chuanglian_flag==0){if(Voltage>50&&flag==0){flag=1;for(inti=0;i<=(8*16);i++) ? ?{Motor_One(5);}}if(Voltage<=50&&flag==1){flag=0;for(int?i=0;i<=(8*16);i++) ? ?{Motor_One1(5);}}}
//報警控制if(alarm_flag==0){if(hongwai==1){BEEP_OFF();}else{BEEP_ON();}}//風扇控制if(temp>30){FAN_ON();WARM_ON();kongtiao_1=1;}if(temp<20){FAN_ON();WARM_OFF();kongtiao_1=1;}if(temp<=30&&temp>=20){FAN_OFF();WARM_ON();kongtiao_1=0;}}
//顯示界面==============================================================voidxianshi(){//第一行OLED_ShowChinese(1,1,0);//溫OLED_ShowChinese(1,2,1);//度OLED_ShowString(1,5,":");OLED_ShowNum(1,6,temp,2);OLED_ShowChinese(1,5,2);//濕OLED_ShowChinese(1,6,1);//度OLED_ShowString(1,13,":");OLED_ShowNum(1,14,humi,2);
//第二行OLED_ShowChinese(2,1,4);//空OLED_ShowChinese(2,2,5);//調OLED_ShowString(2,5,":");if(kongtiao_1==1){OLED_ShowChinese(2,4,16);//開}else{OLED_ShowChinese(2,4,17);//關}//if(mode_flag==0)//{//OLED_ShowChinese(3,8,21); //自//}//else//{//OLED_ShowChinese(3,8,20); //手//}
//OLED_ShowNum(2,6,kongtiao,1);OLED_ShowChinese(2,5,6);//窗OLED_ShowChinese(2,6,7);//簾OLED_ShowString(2,13,":");if(flag==1){OLED_ShowChinese(2,8,16);//開}else{OLED_ShowChinese(2,8,17);//關}//OLED_ShowNum(2,14,chuanglian,1);
//第三行OLED_ShowChinese(3,1,8); //光OLED_ShowChinese(3,2,9); //照OLED_ShowChinese(3,3,18);//強OLED_ShowChinese(3,4,19);//度OLED_ShowString(3,9,":");OLED_ShowNum(3,11,Voltage,2);
//第四行OLED_ShowChinese(4,1,10); //是OLED_ShowChinese(4,2,11); //否OLED_ShowChinese(4,3,12); //有OLED_ShowChinese(4,4,13); //人OLED_ShowChinese(4,5,14); //闖OLED_ShowChinese(4,6,15); //入OLED_ShowString(4,13,":");if(hongwai==1){OLED_ShowChinese(4,8,10);//是}else{OLED_ShowChinese(4,8,11);//否}//OLED_ShowNum(4,15,hongwai,1);}
voiduserHandle(void){
currentDataPoint.valuealarm = hongwai;//Add Sensor Data Collection currentDataPoint.valuekongtiao = kongtiao_1;//Add Sensor Data Collection currentDataPoint.valuetemp = temp ;//Add Sensor Data Collection currentDataPoint.valuehumi = humi ;//Add Sensor Data Collection currentDataPoint.valueliangdu = Voltage ;//Add Sensor Data Collection
}
intmain(void){Delay_init();LED_Init();OLED_Init();DHT11_Init(); NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);//設置中斷優先級分組為組2：2位搶占優先級，2位響應優先級TIM2_Int_Init(72-1,1000-1);//定時1ms 72,000,000Hz/1,000Hz=72,000=72*1000uart_init(115200); //串口1初始化為115200uart2_init(9600);userInit();AD_Init();Key_Init();Motor_Init();gizwitsInit();gizwitsSetMode(WIFI_AIRLINK_MODE);Delay_ms(1000);Delay_ms(1000);while(1){shuju();xianshi();anjian();auto1();userHandle();gizwitsHandle((dataPoint_t *)¤tDataPoint);}}

05

—

實驗效果
