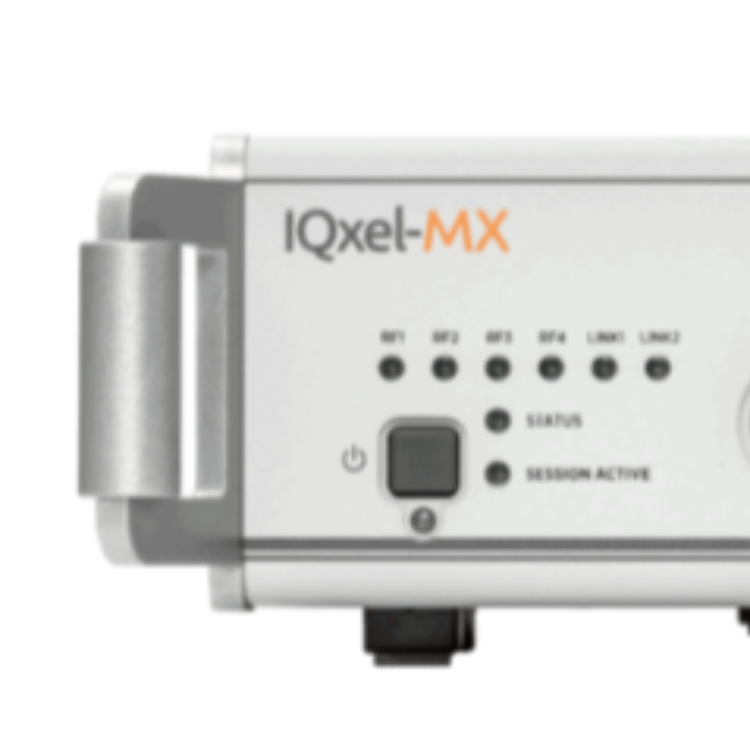

IQxel-MX 高性能 802.11be 測試系統
行業領先的Wi-Fi 7、Wi-Fi 6E和Wi-Fi 6測試性能
下一代無線設備如基于IEEE 802.11be EHT（極高吞吐量）標準的接入點（Access Points）、用戶終端設備（CPEs）和客戶端設備（如智能手機或平板電腦）需要嚴格的射頻（RF）性能以滿足最新的標準要求。物理層（PHY）功能包括在2.4 GHz、5 GHz和6 GHz頻段上的三頻段操作、超寬320 MHz信道、4096 QAM調制、最多16個空間流和多鏈路操作（MLO），這些功能正在推動Wi-Fi設備射頻性能的極限，并引領連接的新紀元。 LitePoint開發了具有行業領先性能的IQxel-MX測試平臺，以確保每個經過測試的無線設備都能滿足或超過嚴格的802.11be要求。
Wi-Fi 7，最快的Wi-Fi一代，需要最好的測試解決方案， LitePoint已經開發出具有行業領先性能的IQxel-MX測試平臺。
IQxel-MX 信號生成與分析結合了高性能、易于使用和卓越的測試經濟性，覆蓋了從研發到大規模生產的整個產品開發周期的測試需求。IQxel-MX 家族有三種配置：2 個端口（2 個 VSA/VSG）、8 個端口（2 個 VSA/VSG）和 16 個端口（4 個 VSA/VSG）。這些支持 2×2 和 4×4 真 MIMO 測試（可擴展至更高階的 MIMO）和高效率的多 DUT 并行測試。
性能保證無線設備的最高準確性
行業領先的EVM確保最高的調制精度
更高的電力準確性確保設備校準精度
可擴展的MIMO架構
全面支持傳統Wi-Fi和廣泛的連接技術
簡約提升測試效率
全面集成的信號生成、信號分析和射頻前端使在2.4、5和6 GHz頻段進行簡單的Wi-Fi 6E和Wi-Fi 7測試成為可能
架構支持多鏈路/多通道（MLO）和共存測試消除了對外部組件的需求，大大簡化了測試設置
靈活直觀的圖形用戶界面（GUI）支持現場和遠程開發
研發、驗證和制造測試的經濟學
基于IQfact+的交鑰匙測試軟件解決方案能夠快速上市，并從產品開發無縫過渡到生產。
多DUT軟件架構通過提供優化的測試吞吐量來降低制造成本
IQxel family software compatibility enables rapid test program migration, reducing development cost
Designed for Wi-Fi 7, Wi-Fi 6E and Wi-Fi 6 Testing in the 2.4 GHz, 5 GHz and 6 GHz Bands
Frequency range from 400 MHz to 7300 MHz
Analysis bandwidth of over 320 MHz
Best-in-class residual Error Vector Magnitude (EVM) floor to ensure the highest measurement accuracy for 4096 QAM
Architecture support for multi-link/multi-channel (MLO) and coexistence testing with internal combiners
Addresses the requirements of the IEEE 802.11be (Wi-Fi 7), 802.11ax (Wi-Fi 6/6E) and 802.11ac (Wi-Fi 5) specifications and tests IEEE 802.11 legacy specifications
Signal generation covers OFDMA RU and multi-RU (MRU) assignments
Signal analysis covers all EHT PHY standard measurements for transmitter (spectral mask, flatness, frequency error, constellation error and more) and receiver (sensitivity, ACR and more)
Expandable architecture supports high order true MIMO testing
Wide Range of Connectivity Technologies (Bluetooth? and Bluetooth? Low Energy 5.x, Channel Sounding, 802.15.4, DECT, LPWAN)
Tests all Bluetooth? device standards (1.x, 2.x, 3.0, 4.x), Bluetooth 5.x AoA and AoD, as well as the upcoming Bluetooth Channel Sounding functionality.
Connectivity standards DECT (ETSI EN 300 176-1), 802.15.4 PHY based standards including ZigBee, Z-Wave and WiSUN
Test support for LPWAN technologies LoRa and Sigfox
Turnkey Solutions for Leading WLAN and Bluetooth? Chipset Manufacturers
Start testing immediately with IQfact+? software solutions for leading WLAN and Bluetooth? chipsets
Growing library of hundreds of chipset-specific test solutions save setup time and development costs
Fully backward compatible with existing LitePoint connectivity test systems
Available Technology Options for WLAN, Bluetooth?, IoT and LPWAN
Wi-Fi, 802.11be (Wi-Fi 7)
Wi-Fi, 802.11ax (Wi-Fi 6, Wi-Fi 6E)
Wi-Fi, 802.11ac (Wi-Fi 5)
Wi-Fi, 802.11a/b/g/j/n/p
Wi-Fi, 802.11af
Wi-Fi, 802.11ah (HaLow)
Wi-Fi, 802.11az Next Generation Positioning (NGP)
Wi-Fi, 802.11ba Wake Up Radio (WUR)
Bluetooth?, Classic/EDR (1-4.x), Low Energy (4.0, 4.1, 4.2), Bluetooth? (5.0, 5.1, 5.2, 5.3) and Bluetooth Channel Sounding
Zigbee, Z-Wave and Wi-SUN
DECT
LPWAN: Sigfox, LoRa
