電荷泵解決更高的電壓應用

　　在最基本的形式中，電荷泵是一種產生大于其工作電壓的電壓的電路。傳統上，電荷泵被認為具有有限的電壓能力，提供性能，被視為在低壓差LDO和開關調節器之間的距離填補利基。盡管如此，還是有一些好處使它們對某些應用程序具有吸引力。例如，電荷泵提供更高的效率和良好的熱管理，并有靈活性，以提高電壓，降壓，或反轉輸入電壓。由于電荷泵使用電容器來存儲和傳遞能量，所以電荷泵也很簡單，不需要電感，它的成本更高，輸出噪聲更高，輸出電流能力也常常降低。

　　隨著工藝技術的進步，制造商已經提高了這些設備的輸入電壓能力。集成電荷泵電路現在能夠驅動低噪聲高壓運算放大器（運放）。它們也可以用來從一個電源提供雙極電源到高壓雙軌高壓運放。它們可以產生足夠的功率來驅動用于背光LCD面板的白光LED。

　　為了解決各種需要高電壓無電感的應用需求，供應商包括線性技術和集成，其中，已經準備好一系列的電荷泵。由于電荷泵輸出沒有得到很好的調節，一些供應商提供調節電荷泵，這是集成片上低壓差穩壓器（LDO）的副產品。

　　Typical examples

　　Linear Technology， for example， has developed two high voltage inverting monolithic charge pump ICs， the LTC3260 and LTC3261， for these applications.1 The LTC3261 is a high voltage inverting charge pump that can deliver up to 100 mA of output current， while the LTC3260 is an inverting charge pump that includes on-chip both positive and negative LDO regulators that can source up to 50 mA output current each.

　　The negative LDO post regulator is powered from the inverting charge pump output. The positive and negative LDO output voltages can be adjusted down to 1.2 and -1.2 V， respectively， using external resistor dividers. Both devices operate over a wide input voltage range of 4.5 to 32 V.

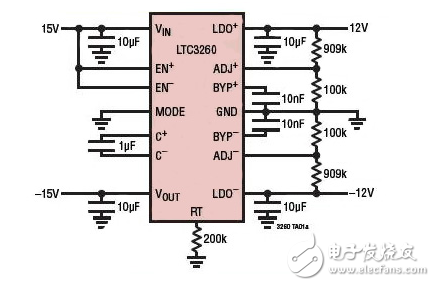

　　A typical application circuit generating ±12 V from a 15 V input is illustrated in Figure 1. As shown， it uses a few external resistors and ceramic capacitors for stability. Plus， the LTC3260 IC features soft-start circuitry to prevent excessive current flow during startup， and incorporates short circuit and thermal protection. The part comes in a low-profile 14-lead DFN package and a 16-lead MSOP package， both with a backside thermal pad. Operating junction temperature for the device is –40° to +125°C.
