| 步距角?????? StepAgle |
| ||
| ?絕緣電阻?? InsultionResistant |
| ||
| ?絕緣強度 Insultion Strength |
| ||
| ?環境溫度? Ambient Temperature |
| ||
| ?溫??升????? Temperature Rise |
| ||
| ?徑向跳動 Radial Play |
| ||
| ?軸向跳動 End Play |
|
| Part Number | No.of phase |
Voltage(VDC) | Current(A) | Resistance? (Ω) | Inductance(mH) | Holding Torque(kg.cm) | Detent Torque(g.cm) |
Rotor Inertia (g.cm2) |
Weight (kg) |

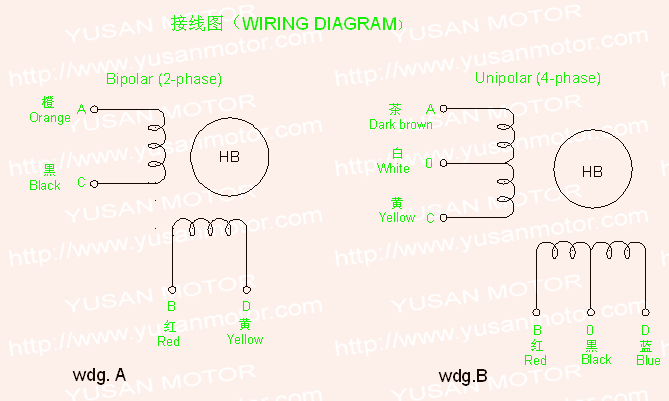

Size | Wire Diagram |

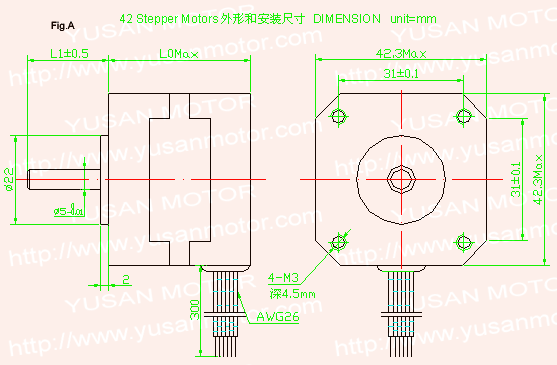

Fig | |
|
L0(mm) |
L1(mm) | ||||||||||||
| 42BYG016 | 4 | 12 | 0.16 | 75 | 55 | 0.9 | <210 | 20 | 0.2 | 33.5 | 16 | wdg.B | |
