tiduc88

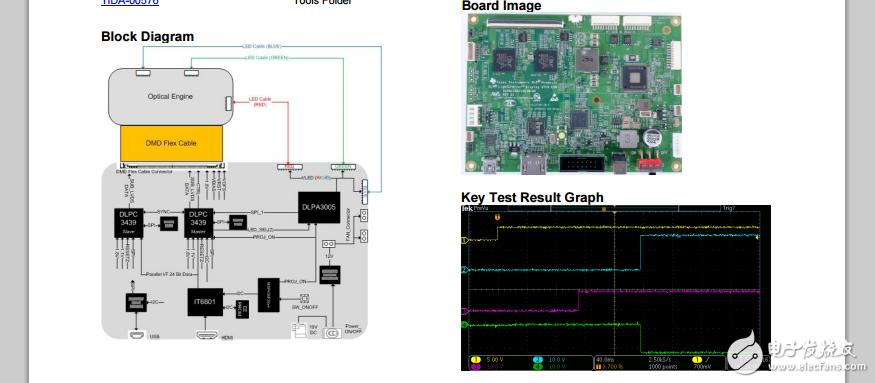

Design Overview

This reference design， featuring the DLP? Pico? 0.47-inch TRP Full-HD 1080p display chipset and implemented in the DLP LightCrafter Display 4710 G2 evaluation module （EVM）， enables use of full HD resolution for projection display applications such as accessory projectors， screenless displays， interactive displays， wearables （including head mounted displays）， signage， industrial and medical displays. The chipset used in the design is comprised of the DLP4710 （.47 1080p） DMD， the DLPC3439 display controller and the DLPA3005 PMIC/LED driver

Design Resources

TIDA-01226 Design Folder DLPC3439 Product Folder DLP4710 Product Folder DLPA3005 Product Folder TIDA-00576 Tools Folder

Design Features

? 1920 x 1080 resolution ? Brightness： 600 RGB lumens @ 16A LED current ? RGB LED-illuminated optical module ? Driver board includes DLC3439 controllers， DLPA3005 PMIC/LED driver ? System board includes HDMI and USB connectivity ? PC software GUI to customize display configurations

Featured Applications

? Screenless TV （mobile smart TV） ? Portable home cinema / business projector ? Low latency gaming display ? Digital signage ? Interactive surface display for retail， restaurant， or gaming applications
