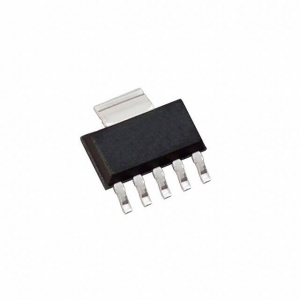

TPS795 超低噪聲、高 PSRR、快速、射頻、500mA 低壓降線性穩壓器

數據:

產品信息

描述 The TPS795 family of low-dropout (LDO), low-power linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in small outline, 6-pin SOT-223 and 3-mm × 3-mm WSON packages. Each device in the family is stable with a small 1-μF ceramic capacitor on the output. The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example, 110 mV at 500 mA). Each device achieves fast start-up times (approximately 50?μs with a 0.001-μF bypass capacitor) while consuming very low quiescent current (265 μA, typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA. The TPS79530 device exhibits approximately 33?μVRMS of output voltage noise at 3-V output with a 0.1-μF bypass capacitor. Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high-PSRR and low-noise features, as well as from the fast response time.特性500-mA Low-Dropout Regulator With EnableAvailable in Fixed and Adjustable (1.2-V to 5.5-V) VersionsHigh PSRR (50 dB at 10 kHz)Ultralow Noise (33 μVRMS, TPS79530)Fast Start-Up Time (50 μs)Stable With a 1-μF Ceramic CapacitorExcellent Load and Line Transient ResponseLow Dropout Voltage (110 mV at Full Load, TPS79530)6-Pin SOT-223 and 3-mm × 3-mm WSON PackagesAPPLICATIONSRF: VCOs, Receivers, ADCsAudioBluetooth?, Wireless LANCellular and Cordless TelephonesHandheld Organizers, PDAsAll other trademarks are the property of their respective owners.

電路圖、引腳圖和封裝圖

技術文檔

數據手冊(1) 相關資料(1)
元器件購買 TPS795 相關庫存
