數據: 3.5 V to 42 V STEP DOWN SWIFT DC/DC CONVERTER WITH ECO-MODE 數據表

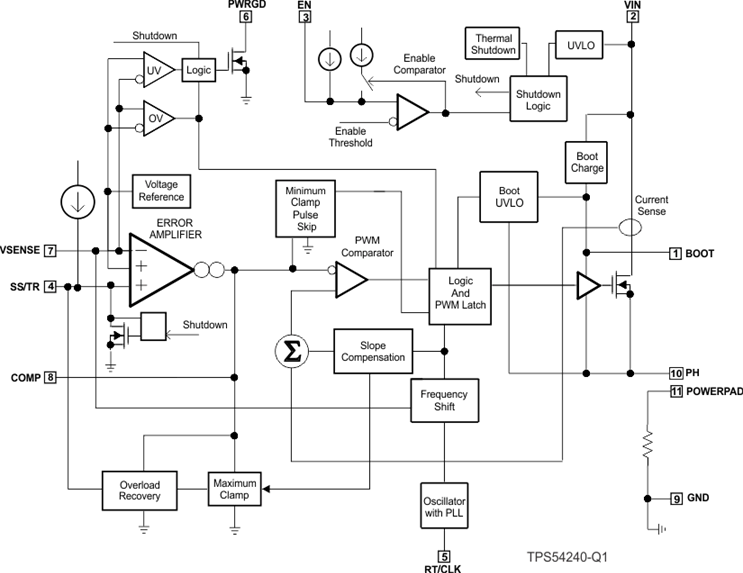

TPS54240-Q1器件是一款42V,2.5A,降壓型穩壓器,集成了高端MOSFET。電流模式控制提供簡單的外部補償和靈活的元件選擇。低紋波脈沖跳躍模式可將空載,穩壓輸出電源電流降至138μA。使能使能引腳時,當使能引腳為低電平時,關斷電源電流降至1.3μA。
欠壓鎖定在內部設置為2.5 V,但可以通過使能引腳增加。輸出電壓啟動斜坡由慢啟動引腳控制,也可配置為排序/跟蹤。漏極開路電源就緒信號表示輸出在其標稱電壓的94%至107%范圍內。
寬開關頻率范圍可以優化效率和外部元件尺寸。在過載情況下,頻率折返和熱關斷可保護器件。
TPS54240-Q1采用10引腳耐熱增強型MSOP PowerPAD封裝。
? |
---|
Vin (Min) (V) |
Vin (Max) (V) |
Vout (Min) (V) |
Vout (Max) (V) |
Iout (Max) (A) |
Regulated Outputs (#) |
Switching Frequency (Min) (kHz) |
Switching Frequency (Max) (kHz) |
Iq (Typ) (mA) |
Features |
Control Mode |
Duty Cycle (Max) (%) |
Operating Temperature Range (C) |
Rating |
Package Group |
? |
TPS54240-Q1 | TPS54260-Q1 | TPS57040-Q1 | TPS57060-Q1 | TPS57140-Q1 | TPS57160-Q1 |
---|---|---|---|---|---|
3.5 ? ? | 3.5 ? ? | 3.5 ? ? | 3.5 ? ? | 3.5 ? ? | 3.5 ? ? |
42 ? ? | 60 ? ? | 42 ? ? | 60 ? ? | 42 ? ? | 60 ? ? |
0.8 ? ? | 0.8 ? ? | 0.8 ? ? | 0.8 ? ? | 0.8 ? ? | 0.8 ? ? |
39 ? ? | 58 ? ? | 39 ? ? | 58 ? ? | 39 ? ? | 58 ? ? |
2.5 ? ? | 2.5 ? ? | 0.5 ? ? | 0.5 ? ? | 1.5 ? ? | 1.5 ? ? |
1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? | 1 ? ? |
100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? | 100 ? ? |
2500 ? ? | 2500 ? ? | 2500 ? ? | 2500 ? ? | 2500 ? ? | 2500 ? ? |
0.138 ? ? | 0.138 ? ? | 0.116 ? ? | 0.116 ? ? | 0.116 ? ? | 0.116 ? ? |
Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable ? ? | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable ? ? | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable ? ? | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable ? ? | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable ? ? | Enable Frequency Synchronization Light Load Efficiency Power Good Tracking UVLO Adjustable ? ? |
Current Mode ? ? | Current Mode ? ? | Current Mode ? ? | Current Mode ? ? | Current Mode ? ? | Current Mode ? ? |
100 ? ? | 100 ? ? | 100 ? ? | 98 ? ? | 100 ? ? | 100 ? ? |
-40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? | -40 to 125 ? ? |
Automotive ? ? | Automotive ? ? | Automotive ? ? | Automotive ? ? | Automotive ? ? | Automotive ? ? |
MSOP-PowerPAD VSON ? ? | MSOP-PowerPAD VSON ? ? | MSOP-PowerPAD VSON ? ? | MSOP-PowerPAD VSON ? ? | MSOP-PowerPAD VSON ? ? | MSOP-PowerPAD VSON ? ? |
